| Brand Name: | IDEC |
|---|---|

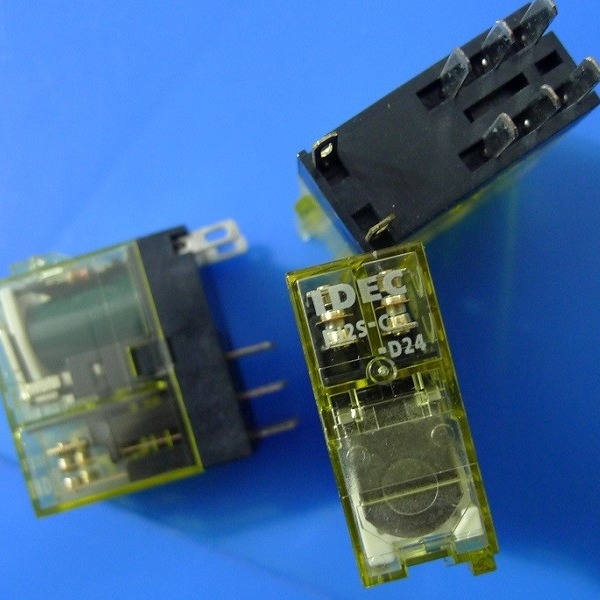

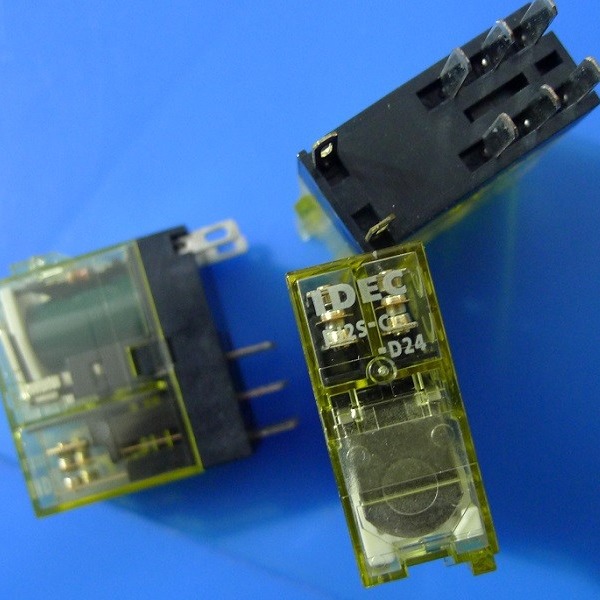

| Model Number: | RJ2S-CL-D24V |
| Packaging Details: | standard export package |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Coil Voltage: | DC24V | Rated Current: | 8A |
|---|---|---|---|
| Contact Form: | Two Open Two Close | Contact Material: | Silver Nickel Alloy |
Dimensions:
Features of RJ series slim power relays
Compact and rugged power relays. Large switching capacity.
• Compact housing only 12.7mm wide.
Large contact rating
RJ1 (1-pole): 16A (UL general use rating @250V AC)
RJ2 (2-pole): 8A
• Non-polarized LED indicator available on blade type. IDEC's unique light guide structure en high visibility of coil status from any direction.
• Excellent electrical and mechanical life.
Electrical life: 200,000 operations (AC load)
Mechanical life: 30 million operations (AC load)
• RoHS directive compliant (EU directive 2002/95/EC). Contains no lead, mercury, hexavalent chromium, PBB or PBED).
• Diode model:
Diode reverse withstand voltage:1000V
• UL recognized, CSA certified, EN compliant.
Specifications
| Model | RJ1 | RJ2 | |
| Number of Poles | 1-pole | 2-pole | |
| Contact Configuration | SPDT | DPDT | |
| Contact Material | Silver-nickel alloy | ||
| Degree of Protection | IP40 | ||
| Contact Resistance (initial value) (*1) | 50mΩ maximum | ||
| Operate Time (*2) | 15 ms maximum | ||
| Release Time (*2) | 10 ms maximum (with diode: 20 ms maximum) | ||
| Dielectric Strength | Between contact and coil | 5000V AC, 1 minute | 5000V AC, 1 minute |
| Between contacts of the same pole | 1000V AC, 1 minute | 1000V AC, 1 minute | |
| Between contacts of different poles | -- | 3000V AC, 1 minute | |
| Vibration Resistance | Operating extremes | 10 to 55Hz, amplitude 0.75 mm | |
| Damage limits | 10 to 55Hz, amplitude 0.75 mm | ||
| Shock Resistance | Operating extremes | NO contact: 200m2/s NC contact: 100m2/s | |
| Damage limits | 1000m2/s | ||
| Electrical Life (rated load) | AC load: 200,000 operations minimum (operation frequency 1800 per hour) | ||
| DC load: 100,000 operations minimum (operation frequency 1800 per hour) | |||
| Mechanical Life (no load) | AC coil: 30,000,000 operations minimum (operation frequency 18,000 operations per hour) | ||
| DC coil: 50,000,000 operations minimum (operation frequency 18,000 operations per hour) | |||
| Operating Temperature (*3) | -40 to +70℃ (no freezing) | ||
| Operating Humidity | 5 to 85% RH (no condensation) | ||
| Weight (approx.) |
19g (blade type), 17g (PCB form C type), 16g (PCB form A type) |
||
