| Place of Origin: | Germany |
|---|---|
| Brand Name: | SIEMENS |
| Model Number: | 5SY4340-7 |
| Minimum Order Quantity: | 1 |
| Product Name: | Siemens Circuit Breakers | Series: | 5SY4 |
|---|---|---|---|
| Number Of Poles: | 3 | Rated Current: | 40A |
| Tripping Characteristics: | Type C | Rated AC Voltage: | 400v |
| Breaking Capacity: | 10kA | Special Function: | Double Terminal Room, Time-saving Replacement |
| Reset Actuator Type: | Toggle Switch | Circuit Breaker Type: | MCB |
| High Light: | solar cell production,walking beam |
||

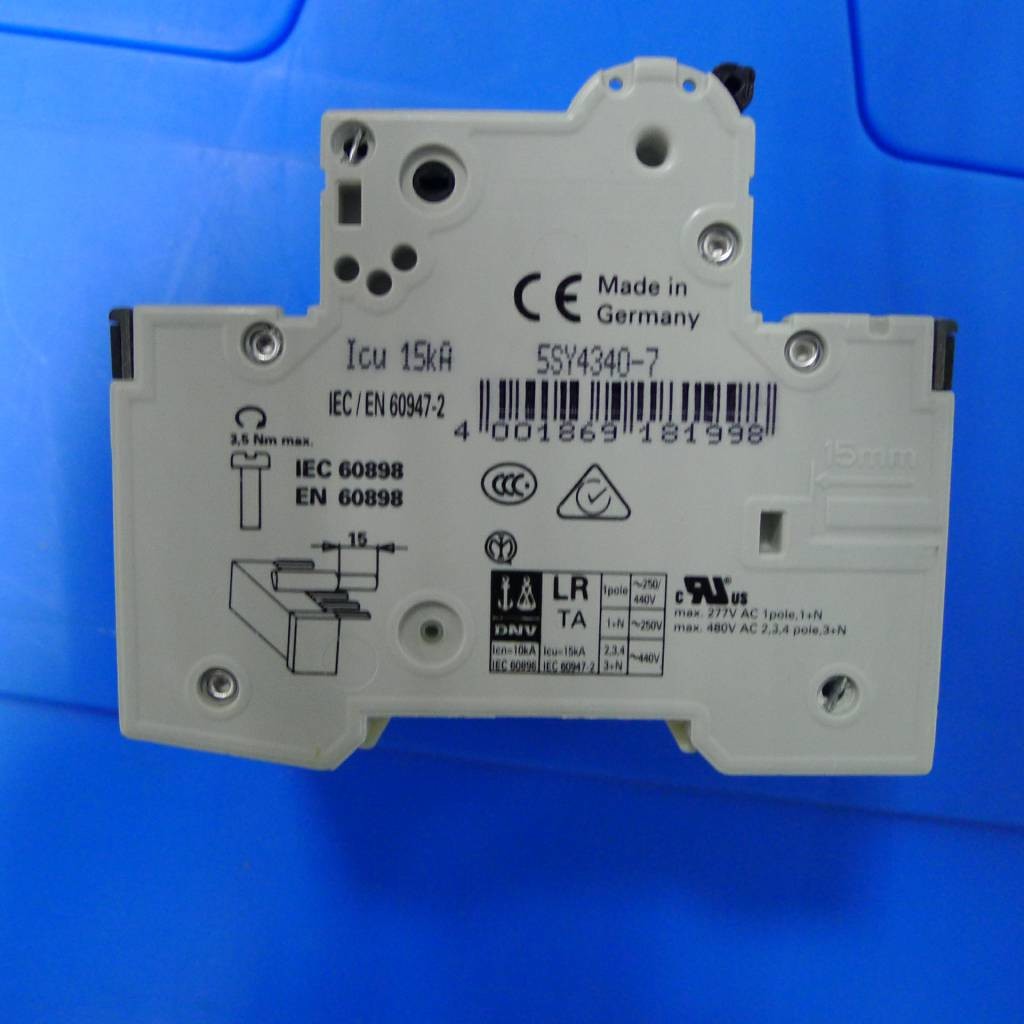

5SY4340-7 Icu 15KA Solar Cell Stringer Parts Siemens Circuit Breakers
Miniature circuit breakers from Siemens, offer the highest quality and reliability. The excellent technical properties of the devices mean you are always on the safe side. Apart from that you benefit from the innovative mounting options which enable quick and easy installation. The miniature circuit breakers from Siemens can be combined as required with a wide range of supplementary components e.g. control current switches, fault signal contacts, shunt releases, under voltage releases, remote operating mechanisms or with RCCB units to provide protection for persons and against fire.
Automatic cut-out, 1, 2,3 and 4-pole
DIN rail assembly
For use in industry, and in the functional and residential construction sector
Supports fast and convenient removal from the assembly
IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
| Partname | Supplier Part no. |
| Clamp block | PY1508-02-01-02-06-004B |
| The upper cutting knife | PY1508-02-01-01-006A |
| The lower cutting knife | PY1409-02-01-05-007C |
| The upper cutter movable joint | JA30-10-125 |
| NG cell box | PY1203-01-08-005B |
| Suction cup | ZP16BS |
| Vacuum ejector - A | ZH10DS-06-06-08 |
| Vacuum ejector - B | ZL212 |
| Vacuum ejector - C | ZFB300-10 |
| Pressure relief valve | AR20K-01BE-B |
| 3 port pressure relief manual valve | IR1000-01BG |
| Vacuum pressure regulator valve - A | AP100-02 |
| Filter/Regulator pressure valve - A | VHS400-02 |
| Vacuum pressure regulator valve - B | IRV20-C10B |
| Filter/Regulator pressure valve - B | AW40-04G-A |
| Pressure meter | G46-10-01M-C |
| 3 port solenoid valve | VP542R-5DZ1-03A |
| Double position five port solenoid vavle | SY5220-5HZ-01 |
| Three position five port solenoid valve | SY5420-5HZ-01 |
| Two way solenoid valve | VQ21A1-5YZB-C6-F |
| Solenoid valve | VT307-5DZ1-01-F |
| Pressure speed control valve - A | 3C-IS10E-4004-6L-A |
| Pressure speed control valve - B | ZSE30A-01-N-LB |
| Pressure speed control valve - C | AS1201F-M5-04A |
| Pressure speed control valve - D | ASP430F-02-08S |
| Pressure speed control valve - E | WJSC4-M5B |
| Cylinder - A | CDG1BA32-75Z |
| Cylinder - B | CDG1BA50-150Z |
| Cylinder - C | CDUJS20-20DM |
| Cylinder - D | CDUJS20-20DM |
| Cylinder - E | CDUJS20-20DM |
| Cylinder - F | RDQB25-20M |
| Cylinder - G | CXSM20-15 |
| 90 degree tilt cylinder | CDRQ2BS30-90C |
| 180 degree tilt cylinder | CDRQ2BS30-180C |
| Electric cylinder | LEY25LA-150M-R5MJT |
| Cylinder - H | RSDQA20-10DK |
| Magnetic switch - A | D-M9BL |
| Magnetic switch - B | DS1-G |
| Coupling - A | MCKSWK40-12-14 |
| Coupling - B | MCSLC25-6-8 |
| Coupling - C | SDWC-39C-12K4×14K5 |
| Toothed belt | ATPV24S5M250-A-N12 |
| Quick release ribbon spool clamp | WSC15 |
| Gearbox - A (Soldering Belt) |
PAF-060-7-S2-P1 |
| Gearbox - B | PAF-60-10-P2 |
| BN058 LED9/L900 CCT=4000K | BN058C LED9/L900 CCT=4000K |
| Vacuum blower motor | 2HB510-AH36-2.2KW-380V |
| Cooling fan motor | 2HB510-AH16-1.3KW-380V |
| Air cooler | AH0608T-CA |
| Thermocouple | SJ600B-3.2x40+35x3000-KU600121516-M8x1.25-7/0.2SSG |
| Cooling fan | SJ8025HA2 |
| Robot | LS6-702S/RC90 |
| Cylinder - H | CDQ2B32-20DZ |
| Buffer | ACJ1007 |
| Cylinder - I | MGJ10-5 |
| Magnetic switch - A | D-F8BL |
| Synchronous belt | 5M-500L-15 |
| Synchronous belt pulley - A | PY1508-11-03-002A |
| Synchronous belt pulley - B | PY1508-11-03-003A |
| Omron safety switch | D4SL-N2FFA-D |
| Omron latch | D4SL-NK2 |
| L series module - A | L61P-CM |
| CPU module | L26CPU-CM |
| Serial communication module | LJ71C24-CM |
| L series module - B | LD77MS16 |
| DI module | LX42C4-CM |
| DO module | LY42NT1P-CM |
| DI module | LX41C4-CM |
| Relay output module | LY10R2-CM |
| CCLINK module | LJ61BT11-CM |
| L series module - C | L6EXB-CM |
| L series module - D | L6EXE-CM |
| Module | LC30E-CM |
| Servo encoder cable - A | MR-J3ENCBL10M-A1-H |
| Servo motor power cable | MR-PWS1CBL10M-A1-H |
| Brake line 5M | MR-BKS1CBL5M-A1-H |
| Servo encoder cable -B | MR-J3ENCBL5M-A1-H |
| Servo motor power cable | MR-PWS1CBL5M-A1-H |
| Amplifier battery | MR-BAT6V1SET-A |
| Optical communication cable | MR-J3BUS (3M) |
| Servo motor - A | HG-KN43J-K-S100 |
| Servo motor - B | HG-KN43BJ-K-S100 |
| Servo amplifier - A | MR-JE-40B |
| Servo motor - C | HG-KN13J-K-S100 |
| Servo amplifier - B | MR-JE-10B |
| Image processor | XG-7501 |
| CA-CN5L | |
| XG-200M | |
| ML-C1602MP2 | |
| FLT-CPL-30.5 | |
| OP-84231 | |
| OP-51657 |
A: Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors
