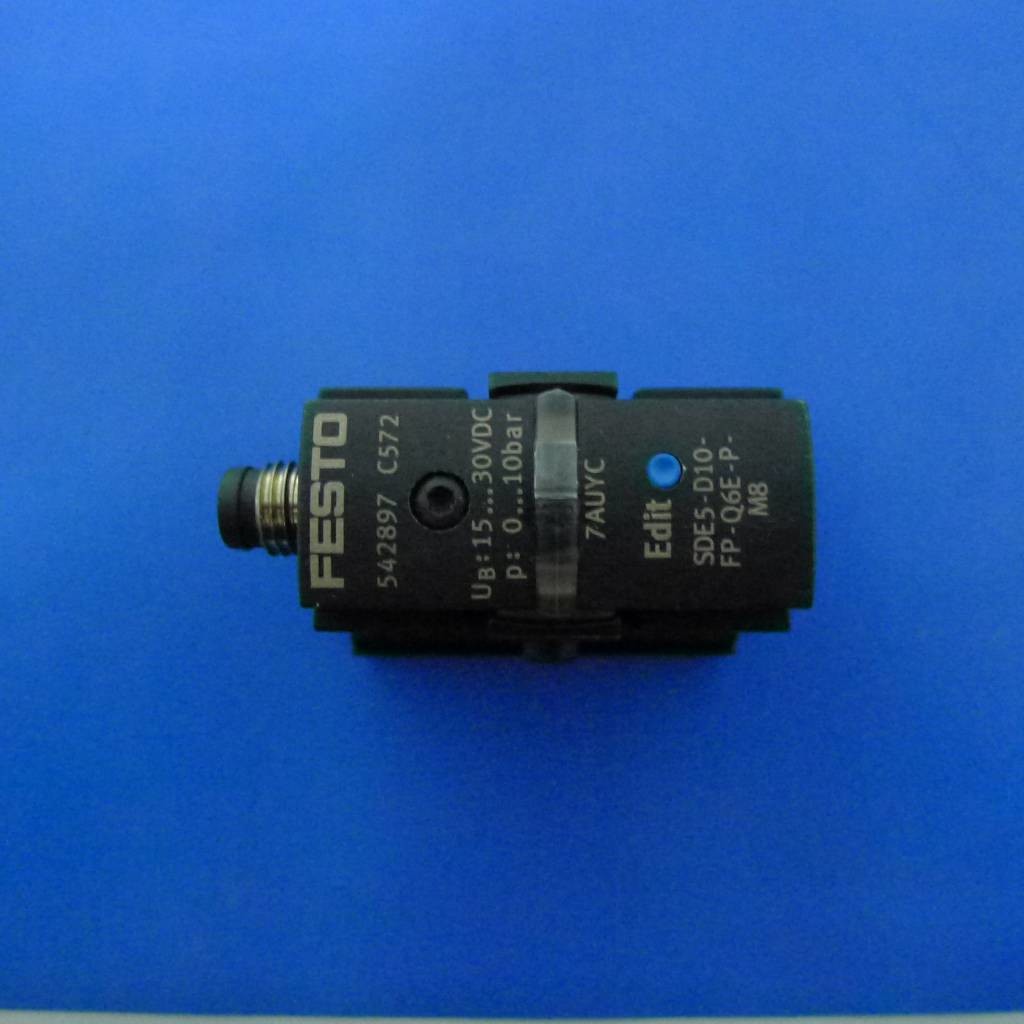

Air Pressure Switch Lamination Machine Parts 542897 C572 FESTO SDE5-D10-FP-Q6E-P-M8

Air Pressure Switch Lamination Machine Parts 542897 C572 FESTO SDE5-D10-FP-Q6E-P-M8

S.no Description
LEAD PART
NUMBER Model/part number Quantity Reference photos
1 180 degrees Slipping rotation unit for Cell pickup 119010213 1
2 Unloading unit vacuum pump(OEION) KRX5-P-V-03, KRX5-P-TV 2
3 Photo micro sensors Omron (E3Z-D61) 10
4 Flux solenoid valve 4
5 Delta VFD(INOVANCE) MD200S0.75B 2
6 Yamaha Robot YK600XG 1
7 Yamaha Robot controller RCX340 1
8 Omron 4 way relay Omron 08817E7 4
9 Omron PLC Power supply PA3001 1
10 Omron PLC CPU NJ501-1400 1
11 Omron A/D card AD081-V1 1
12 Omron D/A card DA08V 1
13 Omron D/A card DA041 1
14 Omron I/D card ID261 1
15 Omron O/D card OD261 1
16 Servo drive (SUZHOU INOVANCE TECHNOLOGY CO.LTD) IS620NS5R5I-MC705 3
17 Servo motor (inova)(Unloading Horizontal, Vertical,
Welding conveyor belt, cell 180 degrees rotation motor) ISMH4-75B30CB 3
18 Servo motor(INOVA)(Ribbon Pull Clamp-1 & 2) ISMH1-75B30CB 3
19 Servo Motor (inova)(string unloading conveyor) ISMH1-40B30CB 1
LDTS4000 Model required consumable parts for quarterly basis
LDTS4000 Model required Recommended parts for yearly basis
20 servo drive regester (Inovance) SH220-10 5
21 Stepper motor drive(Moons ST) Ribbon guide MWST10-Q-RN 2
22 Stepper motor(Moons )Ribbon Guide 2
23
Ribbon motor drive (Moons) Ribbon release ,cell 180
degrees rotational MSST10-S-LH02 5
24
Ribbon motor (Moons)Ribbon release ,cell 180 degrees
rotational AM34HD1404-06 5
25 Cell loading, unloading conveyor motor drive (TPG) CA-201A 1
26 Cell loading, unloading conveyor Gear motor (TPG) AFV-17-0060-030S 1
27 Temp control (Autonics) TM4 1
28 Terminal blocks (siron) T024 10
29 12v DC power supply (meanwell) LRS-50-12 2
30 24v DC power supply (meanwell) SE-1000-24 4
31 24v DC power supply (meanwell) LRS-200-24 1
32 Vacuum display meter SMC-ZSE40AF-01-R 4
33 Robot Vacuum Generator Unit SCHMALZ(SCPSB 10 SO4 NC) 1
34 Optical sensor (Omron) E3X-HD 4
35 MSEP Stepper motor controller MSEP Unit 1
36 HMI( PC) with program(NODKA)
TPC6000-8172TLA-G4XD-
3470-4G-SSDI28G 1
