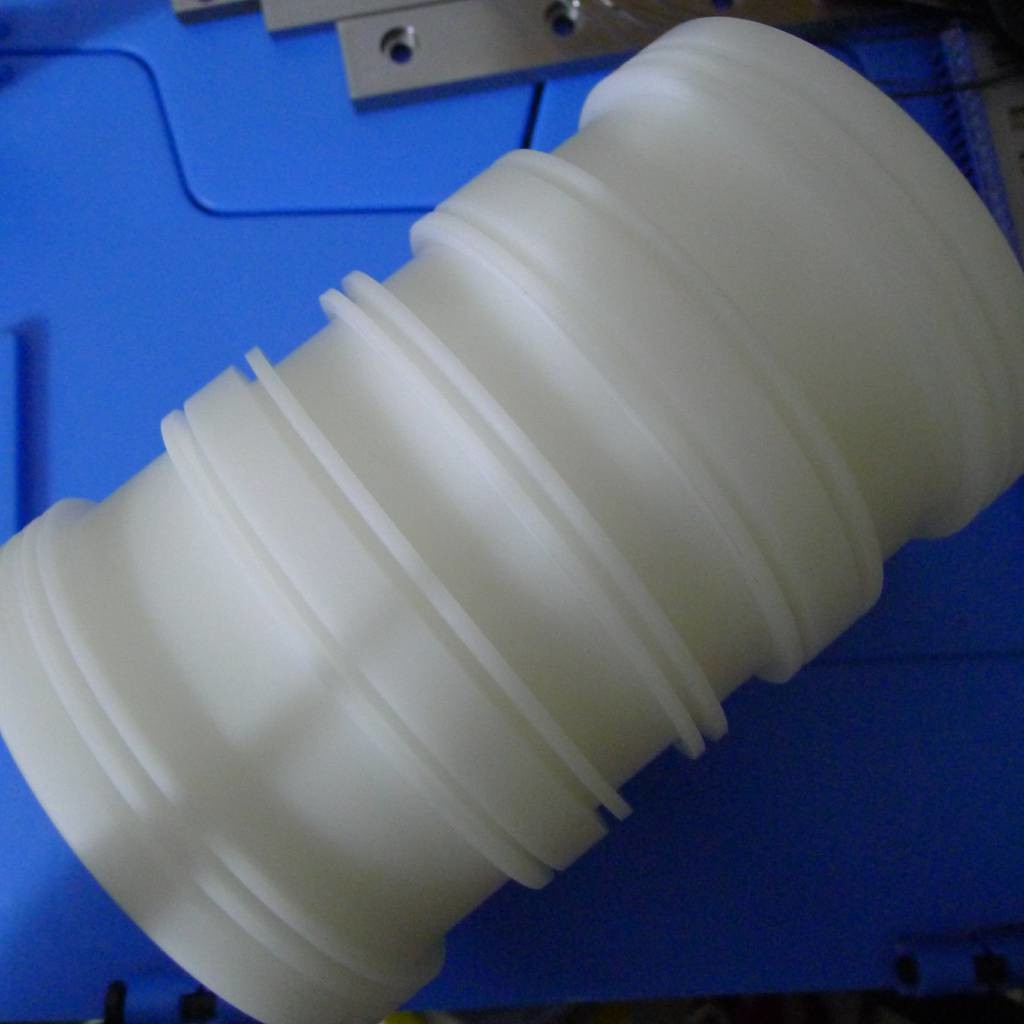

White Lead Welding Roller Tabber Stringer Machine Parts With High Efficiency

White Lead Welding Roller Tabber Stringer Machine Parts With High Efficiency

S.no Description
LEAD PART
NUMBER Model/part number Quantity Reference photos
1 Cell Cassette Loading Conveyor belt 20341-02-011 4
2 Cell Cassette unloading Conveyor belt 20341-02-032 2
3 Cell transfer conveyor belt for CCD 135052275 4
4 Cell transfer motor timing belt for CCD 2
5 Cell loading vacuum sucker cups 50
6 Flux needles 1 box
7 Robot vacuum cups 30
8 Welding conveyer belt 2
9 Welding pressing Jig with along pressing Pins (set) 2 sets
10 String unloading conveyor belt 20232-31-070 2
11 String Layup unloading conveyor belt 135054418 1
12 string unloading travel vacuum cups 150
13 IR lamps 12
14 welding pressing pins and springs 200
15 lamp clamps sets 24 sets
16 String cutter conveyer belt 4
17 String cutter timing belt 2
18 Cassette detect sensor 4
19 Welding conveyer Heaters tubes 20232-31-070 20
20 Airtec Cylinder reed switches 50
21 Welding conveyer thermocouples 15
22 SSR 5
23 Flex spay solenoid Coils 131020531 2
24 Ribbon pincer clamp cylinders 131030589 5
25 Ribbon pincer 5
